- Place of Origin: Shandong,China
- Brand Name: Shandong Datong Machine Technology Co.,Ltd
- Model Number: ZG-PE-250*400
- Weight: 3000.000 kg
- :
- :
- :

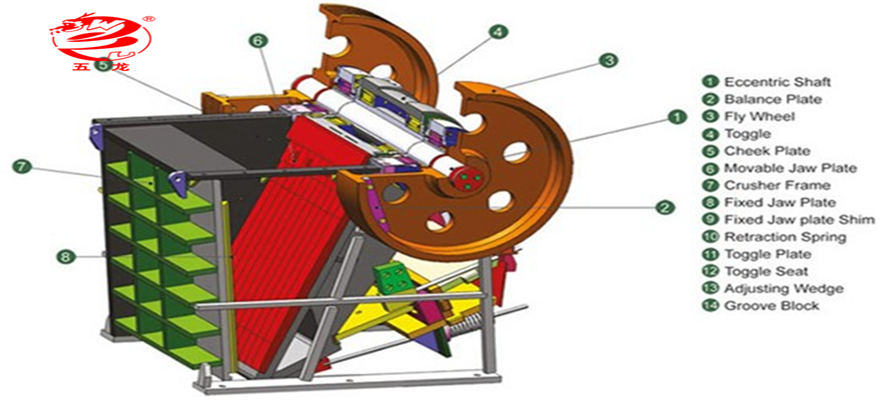

Working principle:
The electric motor drives the eccentric shaft by belt pulley to make moving jaw toothed plate go forward and downward so as to push the moving jaw toothed plate to the fixed jaw toothed plate to crush materials or split materials by doing reciprocating motion of approaching and leaving.
Characteristics:
This machine has such characterictics as big ratio of crushing, homogenous of product, simple structure and convenient maintenance. It can crush materials whose compressive strength is not more than 320MPa and is the first choice equipment in primary crushing.
- Place of Origin: Shandong,China
- Brand Name: Shandong Datong Machine Technology Co.,Ltd
- Model Number: ZG-PE-250*400
- Weight: 3000.000 kg
- :
- :
- :
| ZG-PE Type Jaw Crusher | |||||||
| model | feed lnlet size (l*w) (mm) | discharging size (mm) | maximum feeding material (mm) | ourput (t/h) | motor power (kw) | boundary dimension (l*W*H)(mm) | weight(T) |
| ZG-PE-250*400 | 250*400 | 20-60 | 200 | 8～16 | 15 | 1430*1316*1296 | 3 |
| ZG-PE-250*500 | 250*500 | 20-80 | 210 | 13～21 | 18.5 | 1425*1420*1417 | 3.76 |
| ZG-PE-400*600 | 400*600 | 40-100 | 350 | 14～36 | 30 | 1700*1732*1656 | 6.3 |
| ZG-PE-500*750 | 500*750 | 50-125 | 400 | 30～80 | 45 | 1900*1876*1821 | 9.7 |
| ZG-PE-600*900 | 600*900 | 75-200 | 480 | 56～192 | 75 | 2280*2245*2395 | 17.3 |
| ZG-PE-750*1060 | 750*1060 | 80-235 | 630 | 108～256 | 90 | 2380*2550*2800 | 25.6 |
| ZG-PE-900*1200 | 900*1200 | 95-265 | 750 | 186～398 | 110 | 2960*2930*3265 | 43 |
| ZG-PE-1100*1400 | 1100*1400 | 150-300 | 950 | 250～600 | 132 | 3900*3040*3875 | 66 |
| ZG-PE-1200*1500 | 1200*1500 | 160-320 | 1000 | 280～700 | 160 | 3800*3040*4150 | 77.6 |
