Product introduction

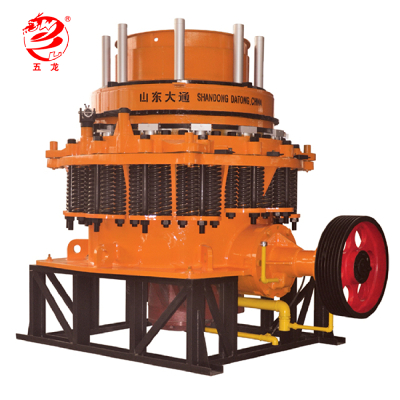

cone crusher is suitable for crushing a variety of mid-hard and above mid-hard ores and rocks such as iron ore, nonferrous metal ores, granite, limetone, quartzite, sandstone, pebbles, etc. It has the advantage of reliable construction, high productivity, easy adjustment and lower operational costs, and is suitable for primary and secondary crushing.
Working Principle
Cone crusher is mainly composed of main frame, eccentric shaft, crushing cone, mantle, bowl liner, adjusting device, dust ring, transmission device, bowl-shaped bearing, adjusting sleeve, etc. The electric motor of the cone crusher drives the eccentric shaft to make periodic swing movement under the shaft axis, and consequently surface of mantle approaches and leaves the surface of bowl liner now and then, so that the material is crushed due to squeezing and grinding inside the crushing chamber. The safety cylinder or spring of the machine can ensure safety as well as lift supporting sleeve and static cone and automatically remove the blocks in the crushing chamber when the machine is suddenly stuffy. Thus the maintenance rate is greatly reduced and production efficiency is greatly improved as it can remove blocks without disassembling the machine.
Company Information
Shandong Datong Machine Technology Co., Ltd is located in Boshan, Zibo city, Shandong Province and established in 1998. Main products include cone crushers, jaw crushers, impact crushers, hammer crushers, double roller crushers as well as vibrating feeders and screens which have already been exported to Nigeria, Indonesia, North Korea, South Africa, Laos, Iran, Thailand, Sultan,Ghana, Mozambique, etc. We established nice relationship with customers by high quality machines and excellent service.
By means of joint R&D with China University of Mining & Technology, Datong machines are continuously upgrading and have won ten utility model patents and certificates. Shandong Datong Machine Technology Co., Ltd is also certified by ISO9001-2008 quality management system, ISO14001-2004 environmental management system and GB/T28001-2011 health safety management system.
Datong Machine sticks to the principle of "Quality and Credit first". Choose Datong, grasp sucess!
Contacts
Melody Qi
Cell/Wechat/WhatsApp 86 13864369390.
Email/Skype: melody@datong-machine.com
- Size: 8.8
- Place of Origin: China
- Brand Name: Shandong Datong Machine Technology Co.,Ltd
- Model Number: PYSB-0910
- Weight: 12400.000 kg
Model | Output size (mm) | MAX Input size (mm) | Capacity (tph) | Motor (kw) | Weight (kg) | Dimension (mm) |
PYSB-0910 | 9-22 | 85 | 45-91 | 75 | 12367 | 2300X1770X2120 |
PYSB-0917 | 13-38 | 150 | 59-163 | 12221 | ||
PYSB-0918 | 25-38 | 150 | 118-163 | 12220 | ||
PYSD-0904 | 3-13 | 35 | 27-90 | 13164 | ||
PYSD-0906 | 3-16 | 51 | 27-100 | 13321 | ||
PYSD-0907 | 6-19 | 65 | 59-129 | 13316 | ||
PYSB-1313 | 13-31 | 115 | 109-181 | 160 | 23900 | 2800X2270X2620 |
PYSB-1321 | 16-38 | 178 | 132-253 | 25391 | ||
PYSB-1324 | 19-51 | 205 | 172-349 | 23592 | ||
PYSB-1325 | 25-51 | 220 | 236-358 | 23549 | ||
PYSD-1306 | 3-16 | 54 | 36-163 | 23127 | ||
PYSD-1308 | 6-16 | 78 | 82-163 | 23099 | ||
PYSD-1310 | 8-25 | 89 | 109-227 | 23213 | ||
PYSD-1313 | 16-25 | 113 | 209-236 | 23245 | ||
PYSB-1620 | 16-38 | 178 | 181-327 | 250 | 45800 | 3900X2930X3242 |
PYSB-1624 | 22-51 | 205 | 258-417 | 45427 | ||
PYSB-1626 | 25-64 | 228 | 299-635 | 45174 | ||
PYSB-1636 | 38-64 | 313 | 431-630 | 45014 | ||
PYSD-1607 | 5-13 | 60 | 90-209 | 45074 | ||
PYSD-1608 | 6-19 | 76 | 136-281 | 44954 | ||
PYSD-1613 | 10-25 | 113 | 190-336 | 44871 | ||
PYSD-1614 | 13-25 | 129 | 253-336 | 44714 | ||
PYSB-2127 | 19-38 | 236 | 544-1034 | 400 | 86730 | 5200X4300X4700 |
PYSB-2133 | 25-51 | 284 | 862-1424 | 86730 | ||
PYSB-2136 | 31-64 | 314 | 1125-1814 | 86730 | ||
PYSB-2146 | 38-64 | 391 | 1252-1941 | 86730 | ||
PYSD-2110 | 5-16 | 89 | 218-463 | 89500 | ||
PYSD-2113 | 10-19 | 113 | 404-580 | 89500 | ||
PYSD-2117 | 13-25 | 151 | 517-680 | 89500 | ||
PYSD-2120 | 16-25 | 172 | 580-744 | 89500 |
