Product Details
- Place of Origin: Shandong,China
- Brand Name: Shandong Datong Machine Technology Co.,Ltd

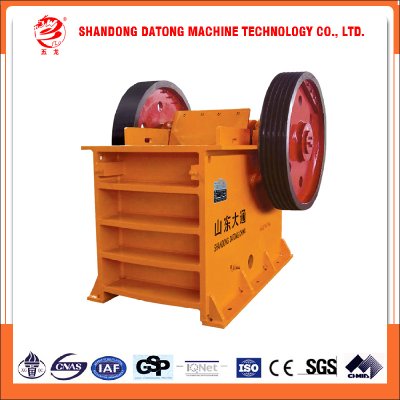

- Model Number: PE-150*250
- Weight: 1000.000 kg
- :
- :
- :
Application: It is applied to fine crushing of various material which compressive strength is less than or equal to 320Mpa and relatively small feeding material granularity and relatively small discharging gate also fitted for the secondary crushing.
- Place of Origin: Shandong,China
- Brand Name: Shandong Datong Machine Technology Co.,Ltd
- Model Number: PE-150*250
- Weight: 1000.000 kg
- :
- :
- :

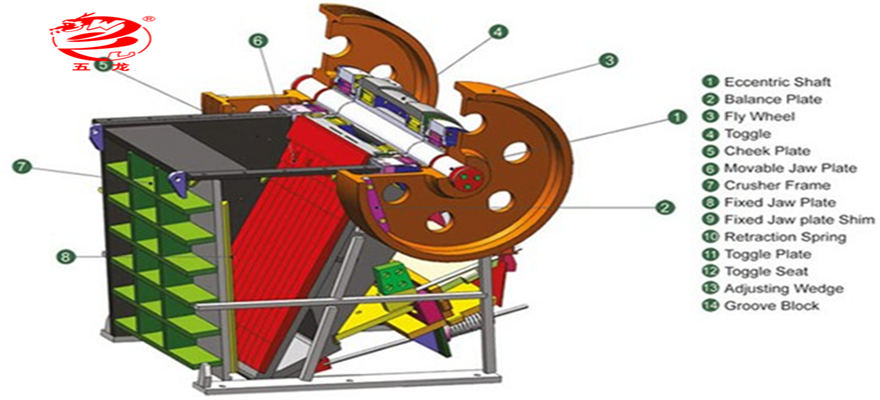

| PE Type Jaw Crusher | |||||||
| model | feeding size(l*w) (mm) | discharging size (mm) | maximum feeding material granularity(mm) | ourput(t/h) | motor power (kw) | boundary dimension (length*width*height) (mm) | weight(T) |
| PE-100*150 | 100*150 | 5～20 | 80 | 0.5-2 | 2.2 | 525*535*605 | 0.7 |
| PE-150*250 | 150*250 | 10-40 | 125 | 2～6 | 5.5 | 875*745*935 | 1 |
| PE-200*350 | 200*350 | 10-50 | 160 | 6～10 | 7.5 | 1080*1060*1088 | 1.6 |
| PE-250*400 | 250*400 | 20-60 | 210 | 8～16 | 15 | 1108*1090*1392 | 2.1 |
| PE-250*500 | 250*500 | 20-80 | 210 | 13-21 | 18.5 | 1360*1450*1440 | 3.8 |
| PE-400*600 | 400*600 | 40-100 | 350 | 14-36 | 30 | 1650*1748*1520 | 6.3 |
| PE-500*750 | 500*750 | 50-125 | 400 | 30-80 | 45 | 1900*1876*1821 | 9.6 |
| PE-600*900 | 600*900 | 75-200 | 480 | 56-192 | 75 | 2280*2245*2395 | 17.5 |
| PE-750*1060 | 750*1060 | 80-235 | 630 | 108-256 | 90 | 2380*2550*2800 | 26 |
| PE-900*1200 | 900*1200 | 95-265 | 750 | 186-398 | 110 | 2960*2930*3265 | 34 |
| PE-1200*1500 | 1200*1500 | 160-320 | 1000 | 280-700 | 160 | 3800*3040*4150 | 65 |
| PE-1500*1800 | 1500*1800 | 220-350 | 1200 | 400-1000 | 315 | 5100*4700*4300 | 88 |
