- Place of Origin: Shandong,China
- Brand Name: Shandong Datong Machine Technology Co.,Ltd
- Model Number: PL-6000
- Weight: 10000.000 kg
- :
- :
- :
Operating principle:

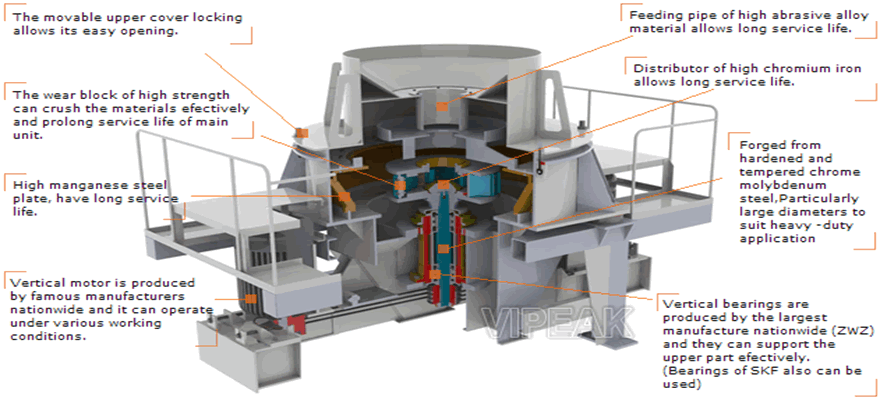

Through high-speed rotation of open-type rotor in the crusher,the rock materials that enter the rotor are tossed out in a high speed and crash against the rock materials that overflow from and slide down the surrouding of feed hopper,realizing the purpose of rock crushing and shaping.
Chracteristics:
The crushing is achieved by rock materials crashing against each other,which reduces abrasion.The changing of factors like rotor diameter,rotation speed and crushing cavity shape,etc,can not only improve crushing efficiency but also effectively control grinding and crushing granularity,so that the required granularity can be realized.Itfeatures advantages like reliability,high effciency,energy conservation,etc.
- Place of Origin: Shandong,China
- Brand Name: Shandong Datong Machine Technology Co.,Ltd
- Model Number: PL-6000
- Weight: 10000.000 kg
- :
- :
- :
| PL Type Vertical Lmpact Crusher | |||||
| model | Impeller rotation speed(r/min) | max feed size(mm) | throughput(t/h) | motor power(kw) | weight (T) |
| PL-6000 | 6000 | 40 | 53-240 | 160 | 11 |
| PL-7000 | 7000 | 40 | 80-430 | 250 | 13 |
| PL-8000 | 8000 | 40 | 188-520 | 160*2 | 16 |
| PL-8500 | 8500 | 45 | 260-400 | 200*2 | 18 |
| PL-9000 | 9000 | 40 | 275-600 | 250*2 | 23 |
| PL-10000 | 10000 | 40 | 300-700 | 315*2 | 26 |
